Description

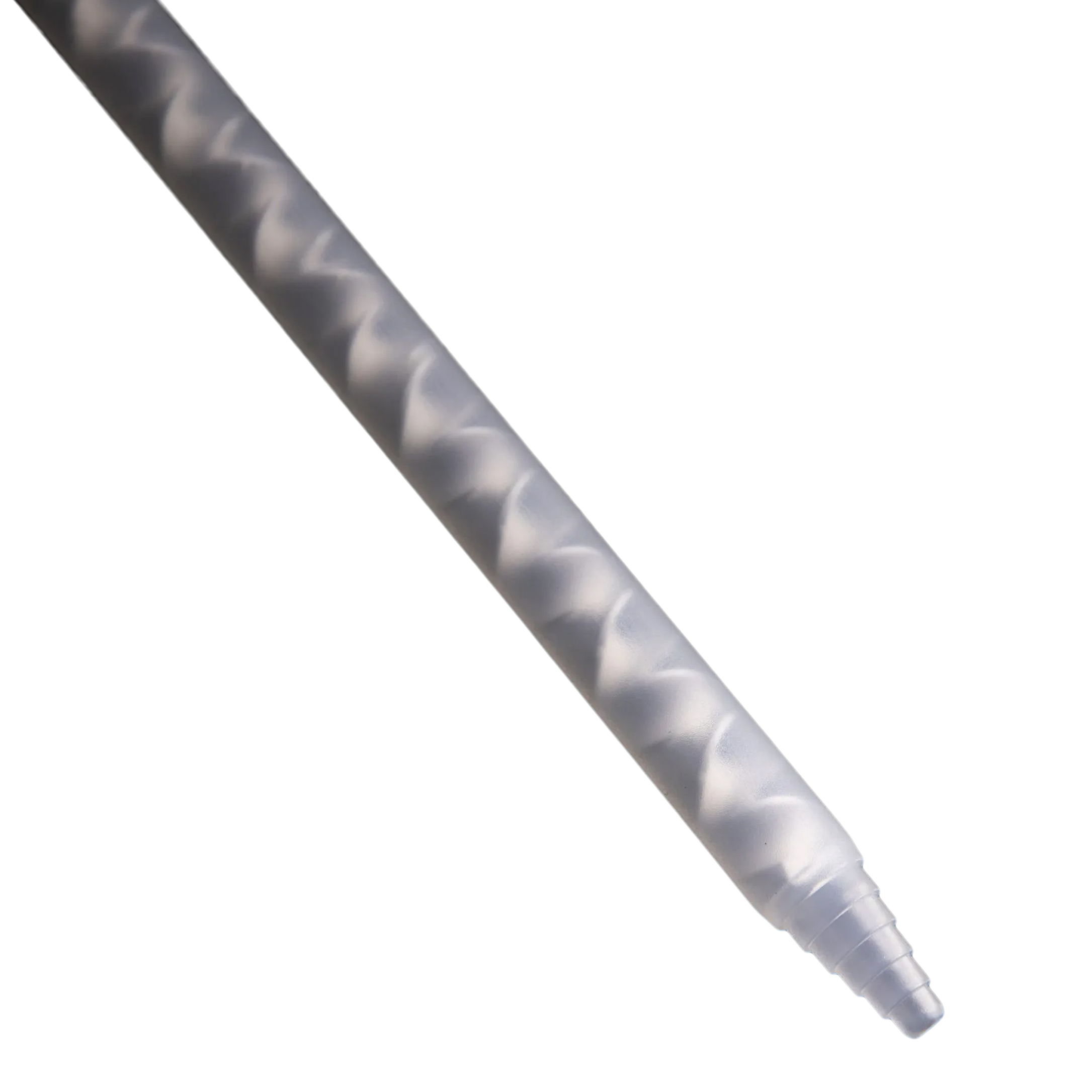

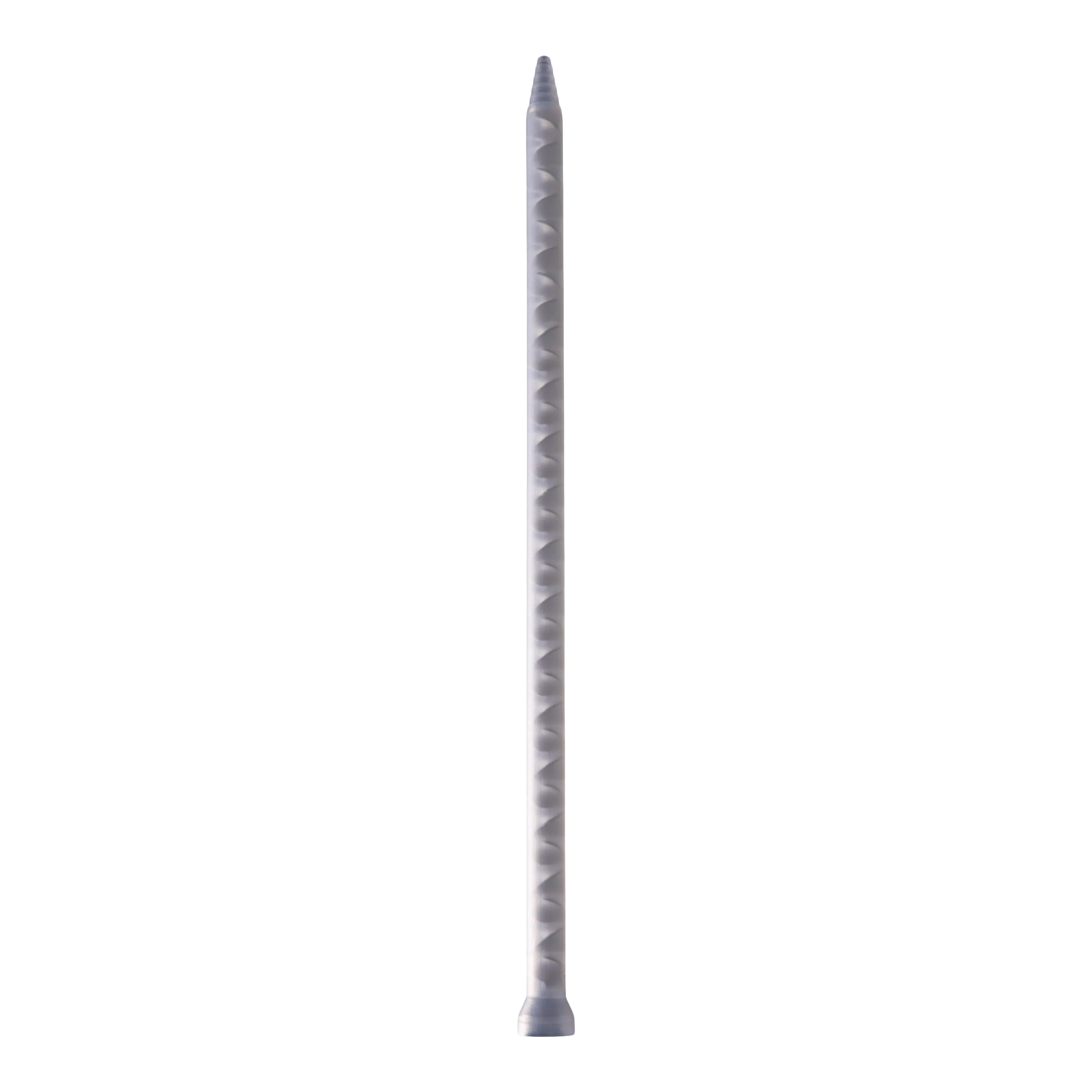

The Nordson TAH 161-224 (new part # 7701010) has 24 mixing elements and a 12.65 mm element diameter (.497 in). This mixer has a stepped tip making it easy for users adjust bead size by simply cutting off the end of the tip.
The 161 mixer is unique in that materials do not meet in the manifold before the mixer, eliminating the problem of manifold plugging and cleaning. Instead, the 161-224 mixer has valve manifolds that separately port the A and B materials directly into the mixer making the cleanup process a simple nozzle removal and manifold wipe.
- Works with Standard Cartridges (Bellmouth Connection)
- Bell Connector
- 24 Mixing Elements (12.65 mm)
- Stepped Tip
- New Part Number 7701028
- Elements: Acetal, Housing: Polypropylene
| Part | Mixing
Elements |
Element
Diameter(inch) |
Housing
Length (inch) |
Outside
Diameter(inch) |
Outlet Tip
Oriface(inch) |
Housing
Outlet |
Pressure
Limit(Psi @ 75°F) |
| 161-224(7701010) | 24 | 0.497 | 11.6 | 0.660 | .18 | Stepped | 270 |
