Description

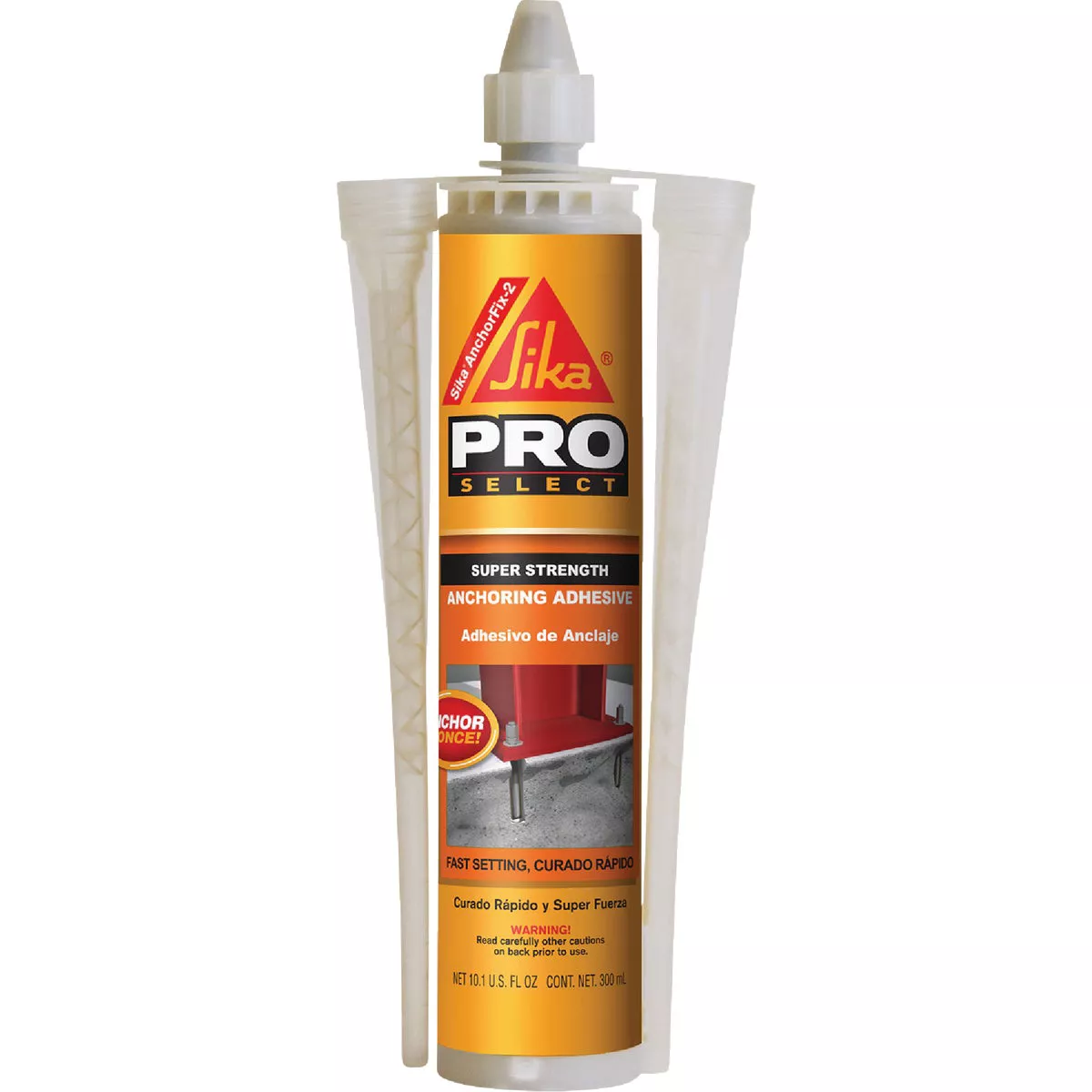

Sika® AnchorFix-2 adhesive anchor system is solvent/styrene free, epoxy acrylate-based, and has been specifically formulated as a high-performance, two-component adhesive anchor system for threaded bars in uncracked concrete.
Benefits:
- Fast curing
- Standard caulk guns can be used
- High load capacity
Usage:
As a fast-curing anchoring adhesive for all grades of:
- Rebars / reinforcing steel
- Threaded rods
- Bolts and special fastening systems
In the following substrates:
- Concrete
- Solid masonry
- Steel
- Hard natural stone*
- Solid rock*
* These substrates may vary greatly, in particular with regard to strength, composition and porosity. Therefore, for each application the suitability of Sika AnchorFix®-2 Adhesive must be tested by first applying the Product only to a sample area. Check in particular bond strength, surface staining and discoloration.
Advantages:
- Fast curing
- Standard caulk guns can be used
- High load capacity
- Drinking Water certified
- Non-sag, even overhead
- Styrene-free epoxy acrylate
- Low wastage
- Fixing close to free edges.
- Versatile range of embedment depths.
- Anchoring without expansion forces.
Approvals/Standards:
- EESR to AC308 by ICC-ES PENDING.
- ESR to AC308 by IAPMO-UES.
- Certified to ANSI / NSF – 61 by UL.
Working & Loading Times:
| Cartridge
Temperature |
T Work (minutes) | Base Material Temperature | T Load (hours) |
| Minimum 41°F | – | 14 °F to 32 °F* | 24 hours |
| Minimum 41 °F | – | 32 °F to 41°F | 180 minutes |
| 41 °F to 50 °F | 8 | 41 °F to 50 °F | 100 minutes |
| 50 °F to 68 °F | 4 | 50 °F to 68 °F | 70 minutes |
| 68 °F to 77 °F | 3 | 68 °F to 77 °F | 40 minutes |
| 77 °F to 86 °F | 2 | 77 °F to 86 °F | 40 minutes |
| 86 °F | 1 | 86 °F | 40 minutes |
T Work is the typical time to gel at the highest temperature in the range
T Load is the typical time to reach full capacity
* The design professional on the job is ultimately responsible for the interpretation of the data provided above.
