Monarch Metal MFSTR 050 Aluminum Z Clip, High Load Capacity, 2 Inch Stock Clip Size, 1/2 Inch Projection, 7/16 Inch Lift-Off

SKU: MRC-MFSTR-050

  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now

Description

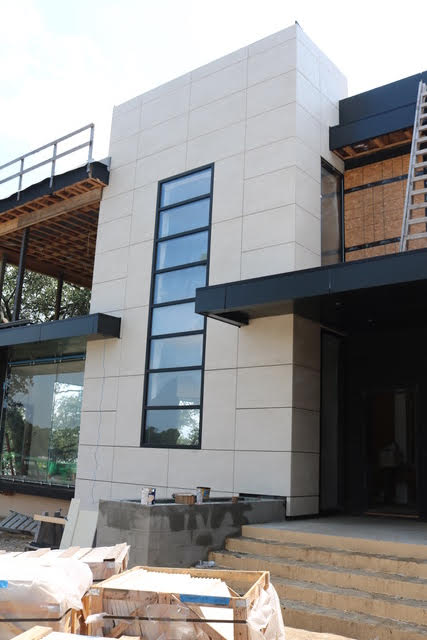

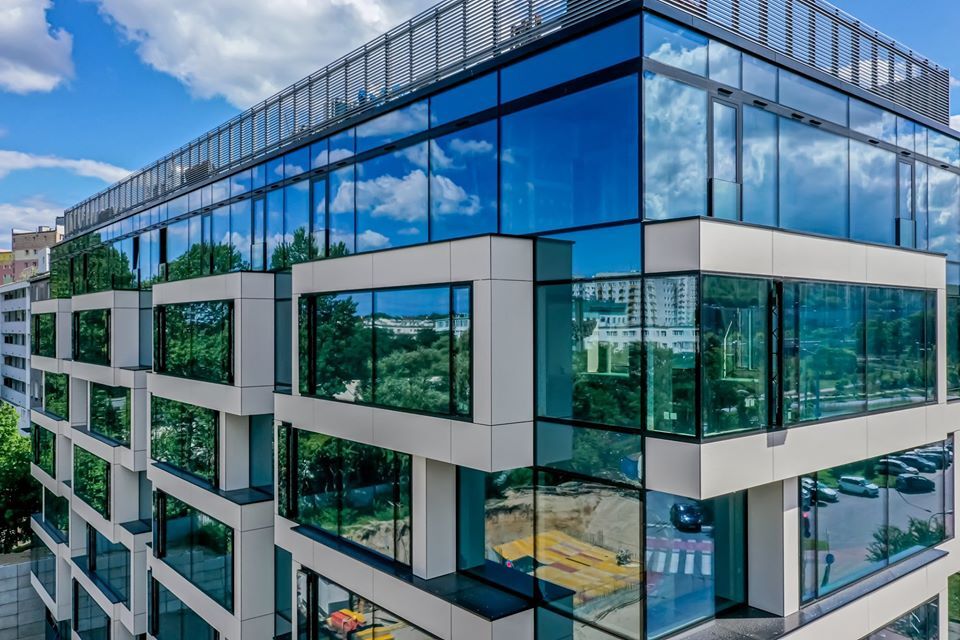

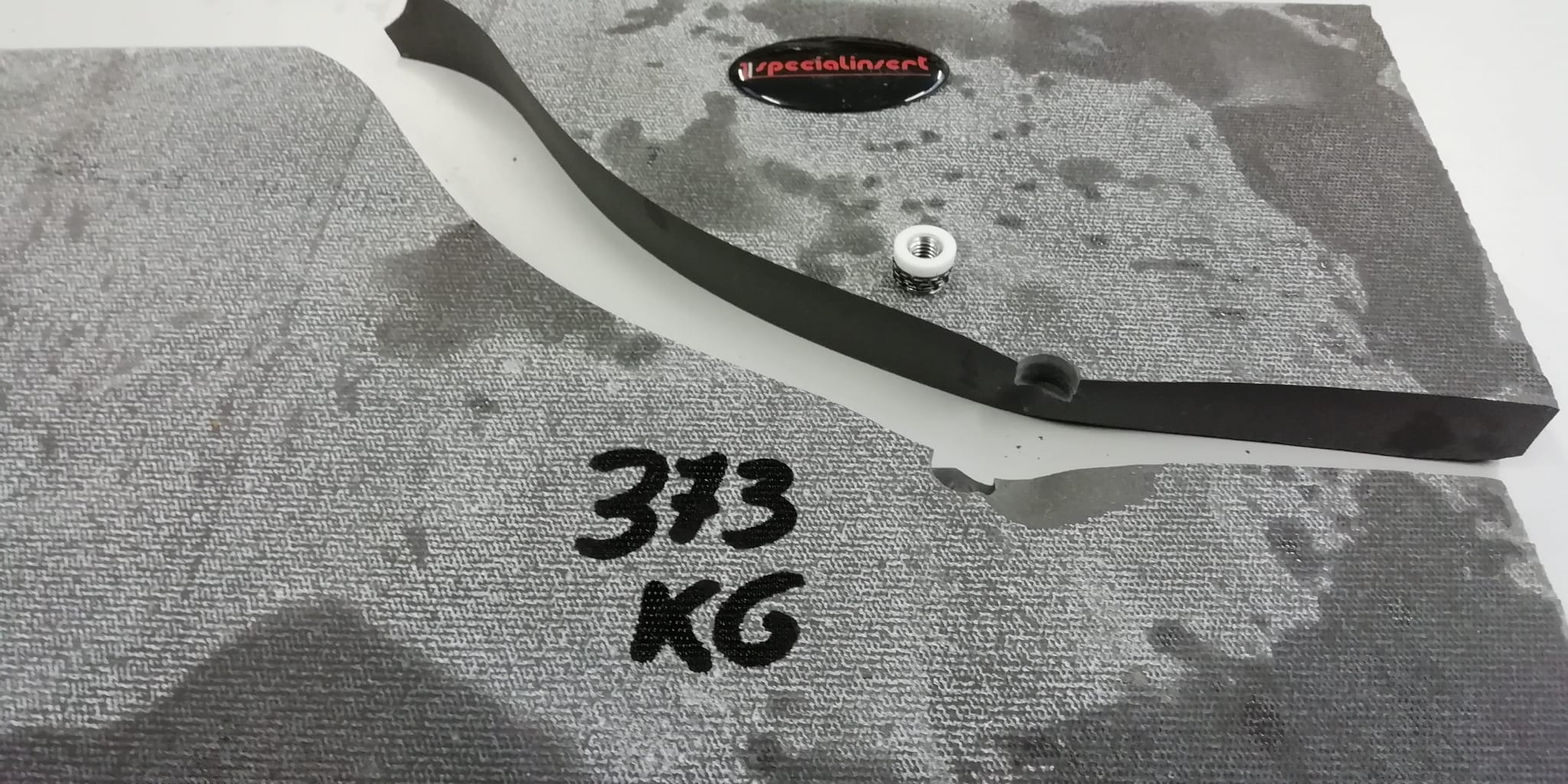

Monarch Metal Clip and Rail System for Mounting Panels – Compatible with Keep-Nut anchors for porcelain, natural stone, HPL, solid surface, & more!

The MFSTR-050 is the perfect high load capacity Z Clip solution for high strength applications that require the use of a larger bolt

12′ or 6′ mounting rail with clips. Keep-nut and installation tools sold separately.

Components:

  • MRC-MFSTR-050-CLIP-20 – MFSTR-050 Clip, 20 count
  • MRC-MFSTR-050-CLIP-250 – MFSTR-050 Clip, 250 count
  • MRC-MFSTR-050-72 – 6′ MFSTR 050 Rail (No Holes)
  • MRC-MFSTR-050-72H – 6′ MFSTR 050 Rail (w/ Holes)
  • MRC-MFSTR-050-144 – 12′ MFSTR 050 Rail (No Holes)
  • MRC-MFSTR-050-144H – 12′ MFSTR 050 Rail (w/ Holes)

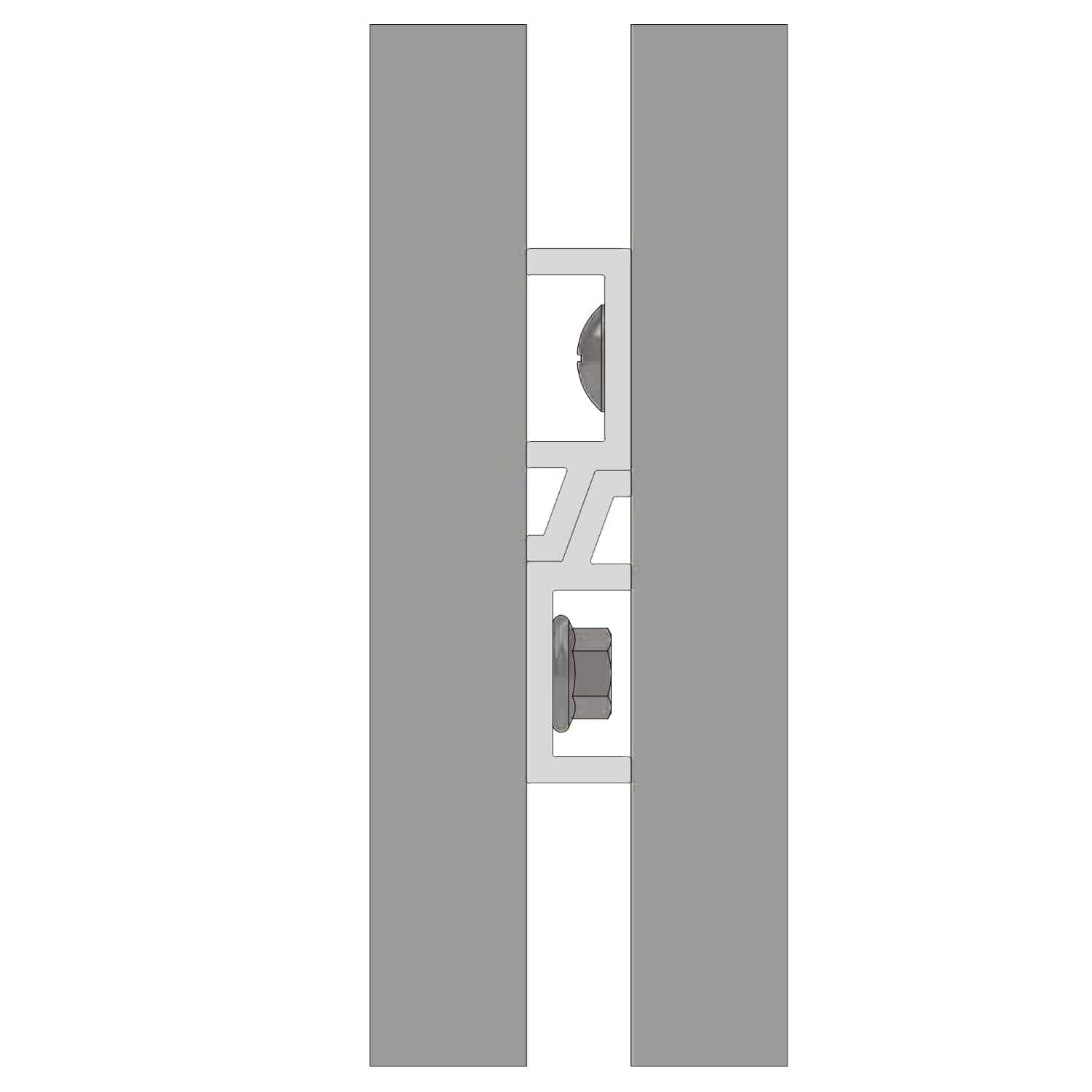

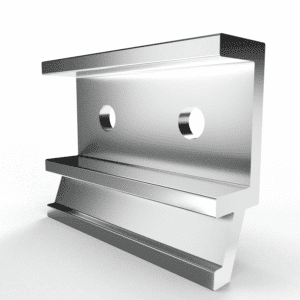

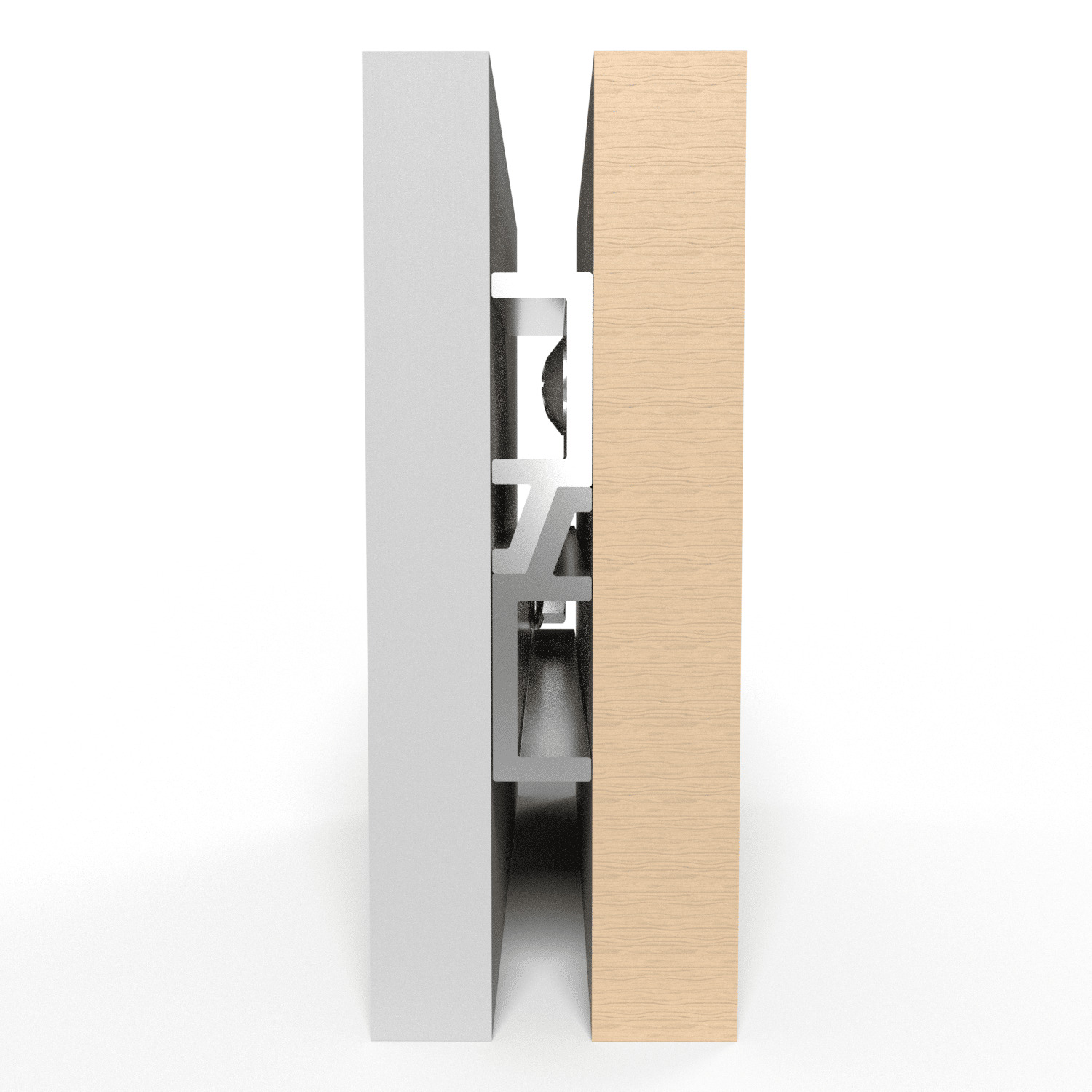

About MFSTR-050 Z Clip

The MFSTR-050 is the perfect high load capacity Z Clip solution for interior installations with only 1/2 inch clearance above the panel.  It is made of aluminum and the Z Clip features a stock clip size length of 2 inches as well as continuous lengths (rails) in 72 inches or 144 inches. This Z Clip also provides 1/2 inch projection and 7/16 inch lift off.



Features of MFSTR-050 Z Clip

  • Compatible with 3/8 inch hex bolts, resulting in heavy duty load bearing capacity
  • Mounts quickly on concrete block or other difficult materials
  • 1/2 inch clearance required between the top of the panel and the ceiling
  • 6063-T6 Aluminum
Material Aluminum
Stock Clip Size 2 Inch
Stock Continuous Length 72 Inch, 144 Inch
Custom Lengths Available Any
Lift Off 7/16 Inch
Projection 1/2 Inch
Availability Same Day Shipping



Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
Manufacturer

Must Ship Freight

Country Of Manufacture

Origin
