CounterBalance® Extended Concealed Bracket

Description

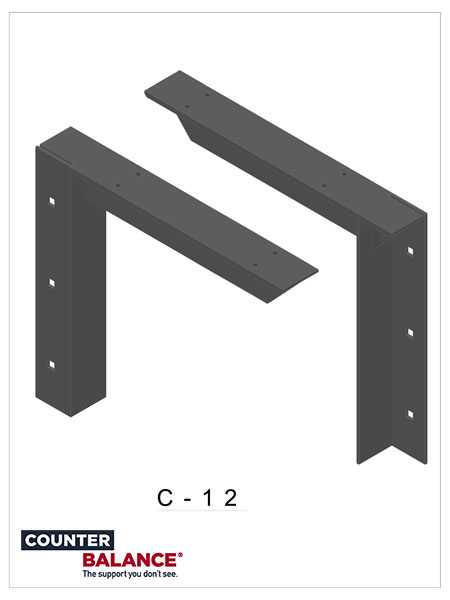

The CounterBalance® Extended Concealed Brackets are hidden countertop support brackets, which can function as either countertop brackets or island brackets. The Extended Bracket come with an Upper Extension (above the support arm) to provide superior strength. Designed to be attached to load-bearing studs behind drywall, these hidden brackets can support an overhang extending 6″ beyond the length of the bracket as per industry-recommended standards. The load limit is 1,800 to 7,960 pounds and is sold with hardware included. These concealed brackets are available in various sizes and colors; choose from the 1.0″ or 2.0″ version in a variety of colors.

• 1.0″ Width Version: 9″, 12″, 15″, and 18″ Support Arm Lengths
• 2.0″ Width Version:  9″, 12″, 15″, 18″, 21″, 24″, and 30″ Support Arm Lengths
• Upper extension (above the support arm) provides superior strength
• Mounting hardware included (1/4″ – 16 x 3″ carriage bolt assemblies)

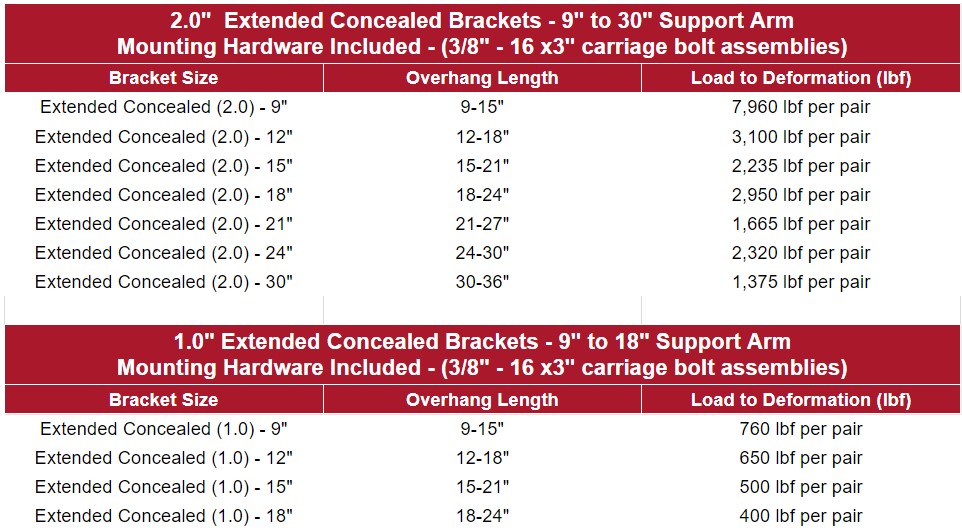

• Load limit range of 1,800 lbs. to 7,960 lbs. per pair — countertop can extend up to 6″ beyond the support
• All welds on reverse for easy, clean install
• Available in Black, White, Almond, and Gray powder coat
• Concealed 9″, 12″, 18″, and 24″ Brackets available in US Made in 2.0″ Width (Black Only)
• 15″, 21″, and 30″ Brackets available in Black and White only
• Recommend backing when used with metal studs
