CounterBalance® Concealed Bracket

Description

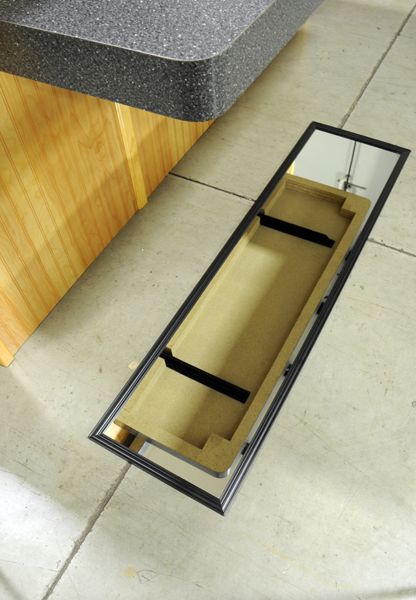

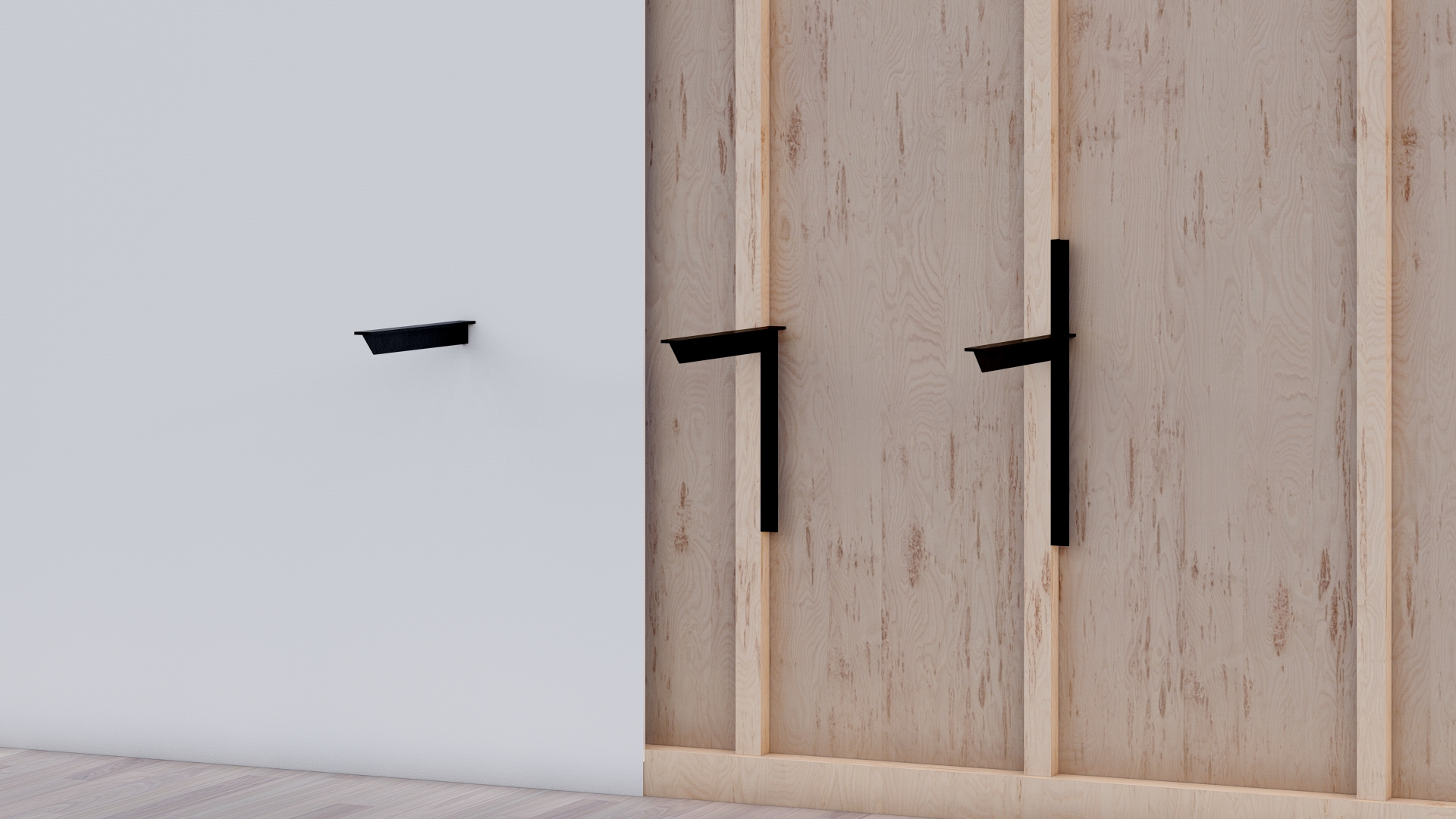

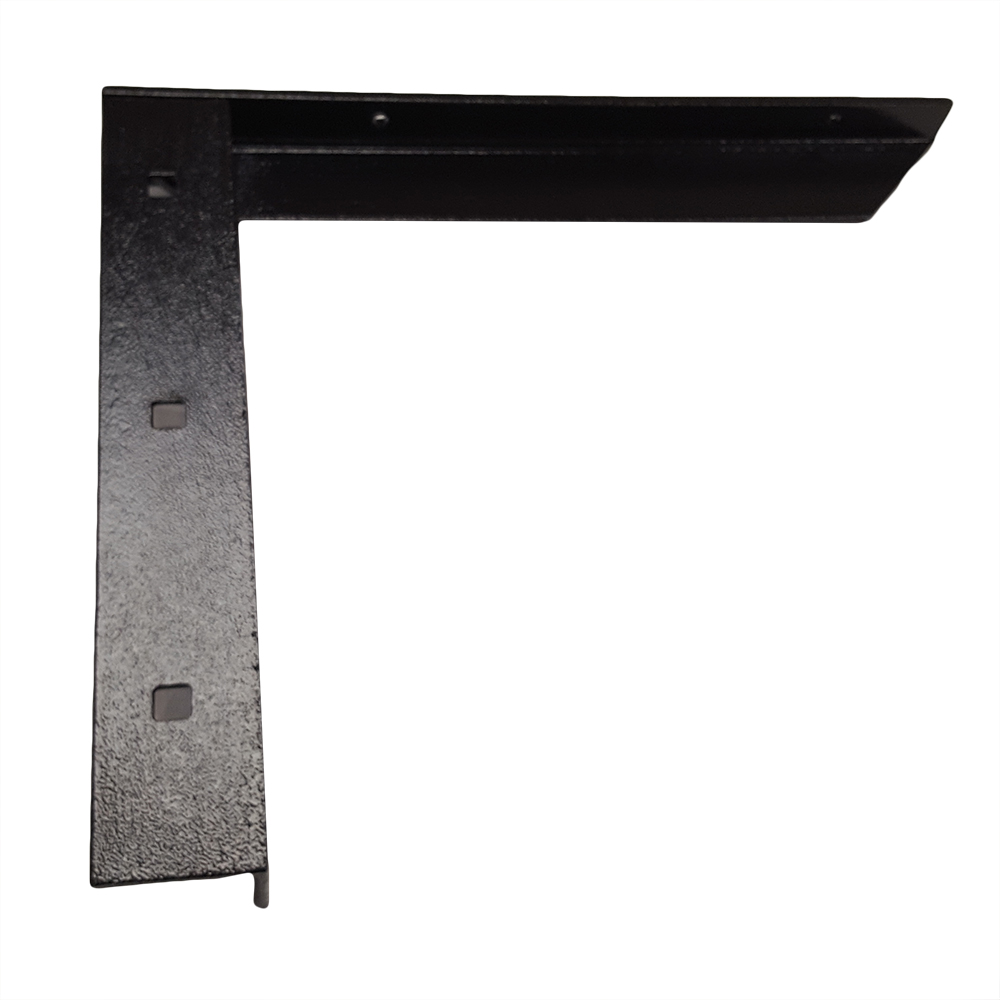

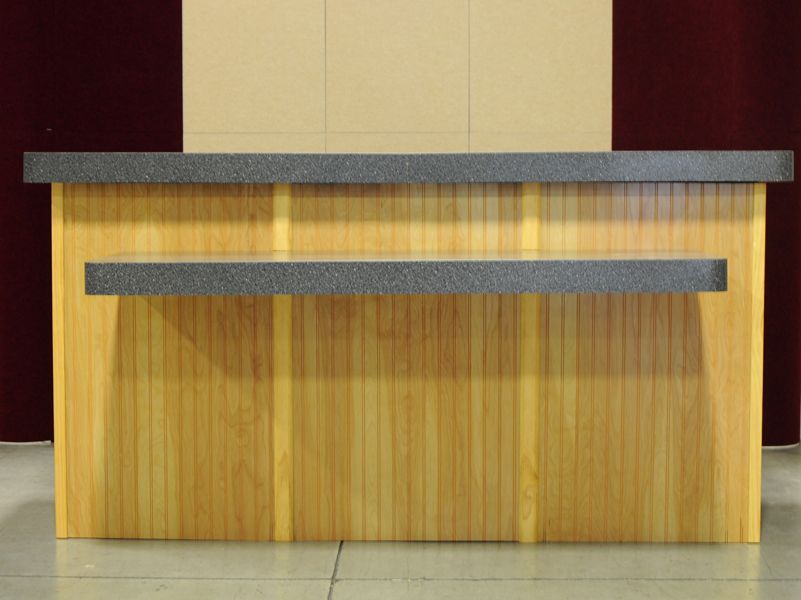

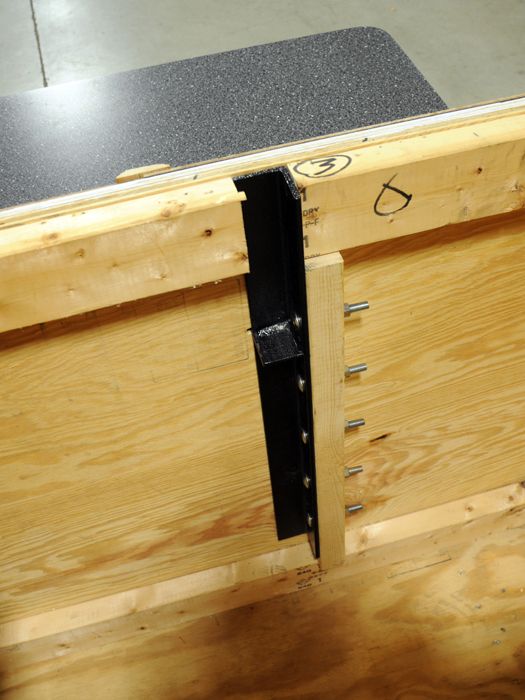

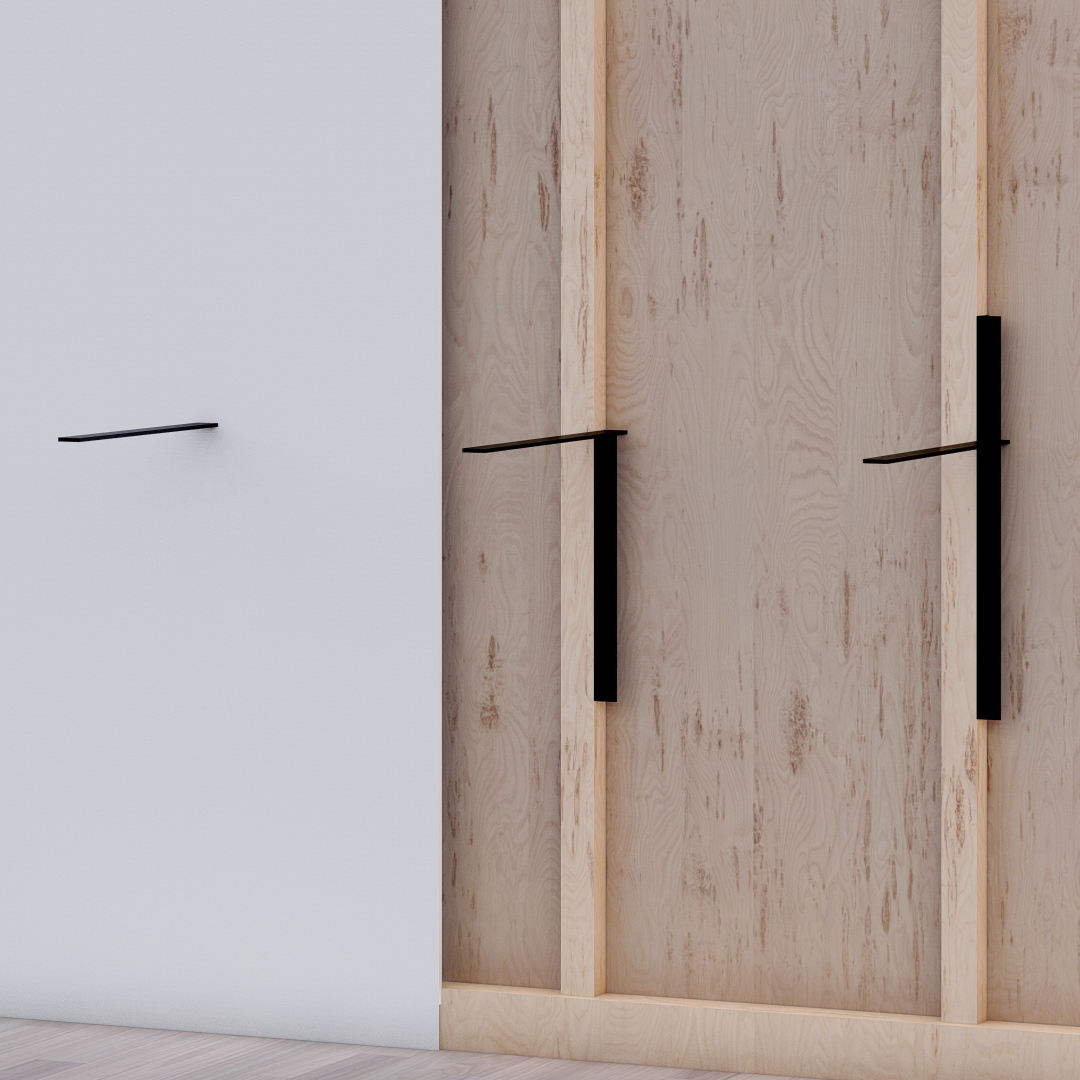

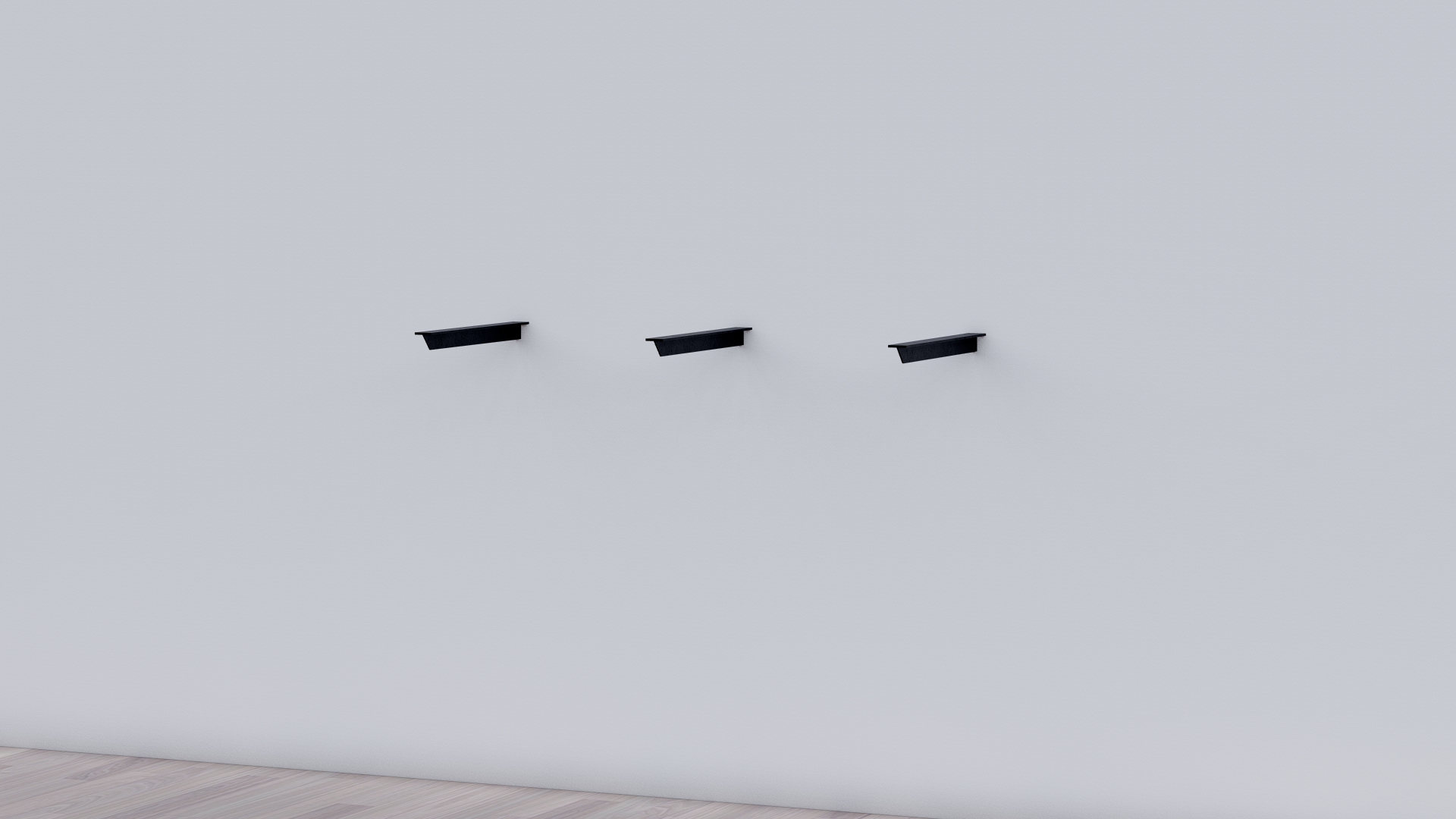

The CounterBalance® Concealed Brackets are hidden countertop support brackets, which can function as either countertop brackets or island brackets. Designed to be attached to load-bearing studs behind drywall, these hidden brackets can support an overhang extending 6″ beyond the length of the bracket as per industry-recommended standards. The load limit is 1,800 to 7,960 pounds and is sold with hardware included. These concealed brackets are available in various sizes and colors; choose from the 1.0″ or 2.0″ version in a variety of colors.

• 1.0″ Width Version: 9″, 12″, 15″, and 18″ Support Arm Lengths
• 2.0″ Width Version:  9″, 12″, 15″, 18″, 21″, 24″, and 30″ Support Arm Lengths
• Mounting hardware included (1/4″ – 16 x 3″ carriage bolt assemblies)
• Load limit range of 1,800 lbs. to 7,960 lbs. per pair — countertop can extend up to 6″ beyond the support
• All welds on reverse for easy, clean install
• Available in Black, White, Almond, and Gray powder coat
• Concealed 9″, 12″, 18″, and 24″ Brackets available in US Made in 2.0″ Width (Black Only)
• 15″, 21″, and 30″ Brackets available in Black and White only
• Recommend backing when used with metal studs
